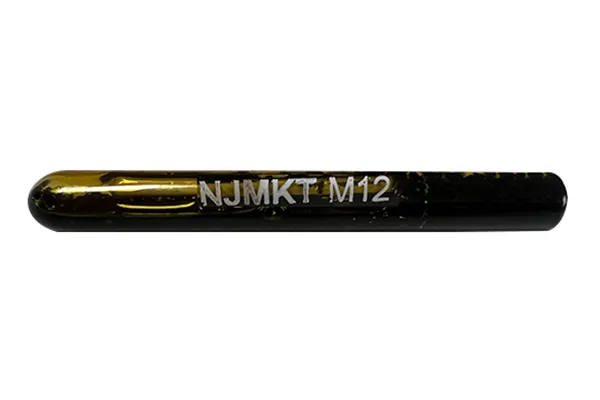

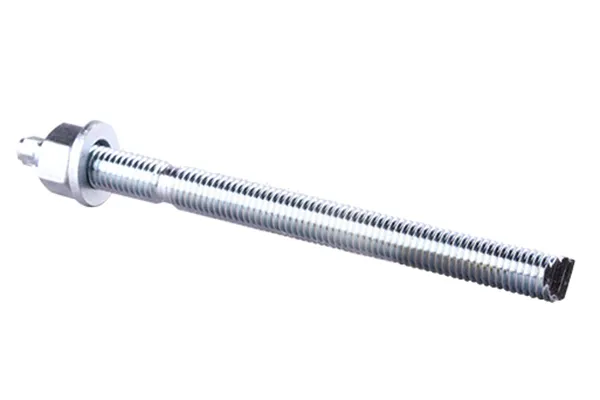

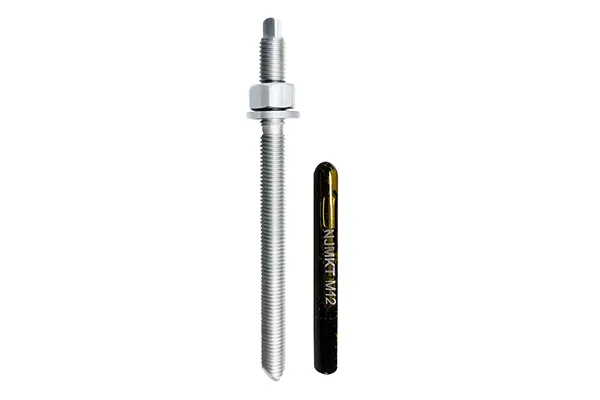

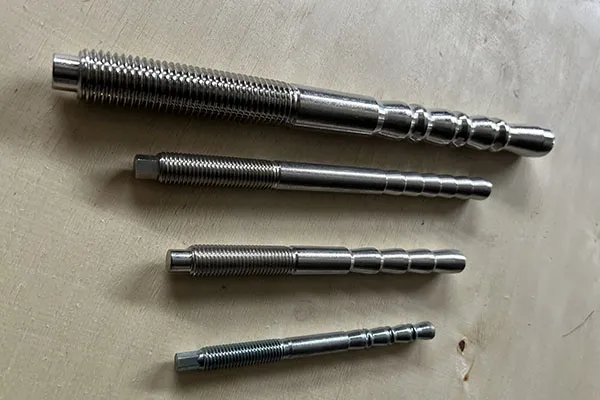

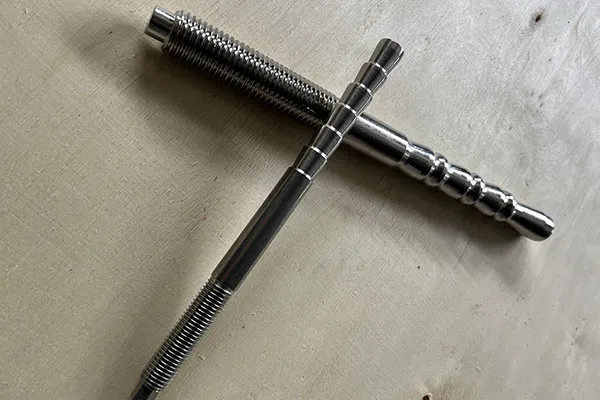

Glass Capsule Threaded Rod Anchor

Technical Data

Anchor rod size	Material class	Effective embedment depth (mm)	Tension load (kN) (nominal/design)		Shear load (kN) (nominal/design)
Anchor rod size	Material class	Effective embedment depth (mm)	Cracked concrete	Non-cracked concrete	Cracked concrete
M8	5.8	80	4.0/2.2	12.1/6.7	7.3/5.6
	8.8		4.0/2.2	12.1/6.7	11.7/9.0
	304		4.0/2.2	12.1/6.7	3.8/3.0
	316		4.0/2.2	12.1/6.7	8.2/6.3
M10	5.8	90	5.7/3.1	17.0/9.4	11.6/8.9
	8.8		5.7/3.1	17.0/9.4	18.6/14.3
	304		5.7/3.1	17.0/9.4	61/4.7
	316		5.7/3.1	17.0/9.4	131/10.0
M12	5.8	110	8.3/4.6	24.9/13.8	16.9/12.9
	8.8		8.3/4.6	24.9/13.8	26.9/20.7
	304		8.3/4.6	24.9/13.8	8.9/6.8
	316		8.3/4.6	24.9/13.8	19.0/14.6
M16	5.8	125	12.6/7.0	37.7/20.9	31.4/24.2
	8.8		12.6/7.0	37.7/20.9	50.2/38.6
	304		12.6/7.0	37.7/20.9	16.5/12.7
	316		12.6/7.0	37.7/20.9	35.3/27.2
M20	5.8	170	21.4/11.9	64.1/35.6	49.0/37.6
	8.8		21.4/11.9	64.1/35.6	78.4/60.3
	304		21.4/11.9	64.1/35.6	25.7/19.8
	316		21.4/11.9	64.1/35.6	55.1/42.4
M24	5.8	210	31.7/17.6	95.0/52.8	70.6/54.3
	8.8		31.7/17.6	95.0/52.8	112.9/86.8
	304		31.7/17.6	95.0/52.8	37.1/28.5
	316		31.7/17.6	95.0/52.8	79.4/61.1

Applications

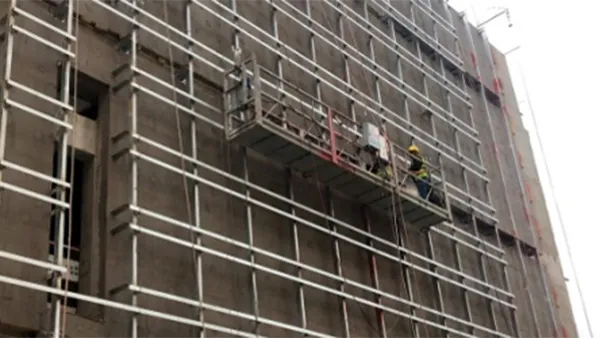

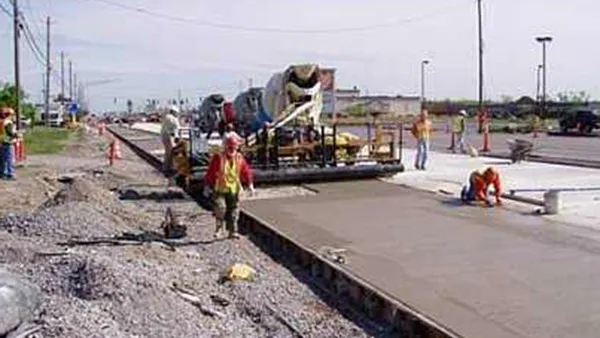

Suitable for enhancing the strength and stability of concrete structures, including buildings, bridges, and various industrial installations.

Features

Designed for quick and straightforward installation, reducing time on-site and improving project efficiency.
Fast-setting resin ensures a strong bond in a short amount of time, speeding up the construction process.
Ideal for projects with limited edge distances or tight spacing between anchors, offering flexibility in various construction layouts.
These threaded rod anchors can be welded, allowing for further customization and adaptability in a range of applications.
