Undercut anchor bolt with injection anchoring adhesive
Chemical Anchors
Injection Adhesive Undercut Anchor
Undercut anchor bolt with injection anchoring adhesive

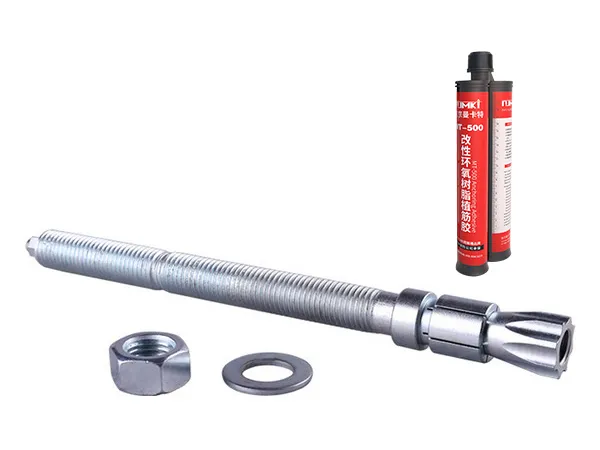

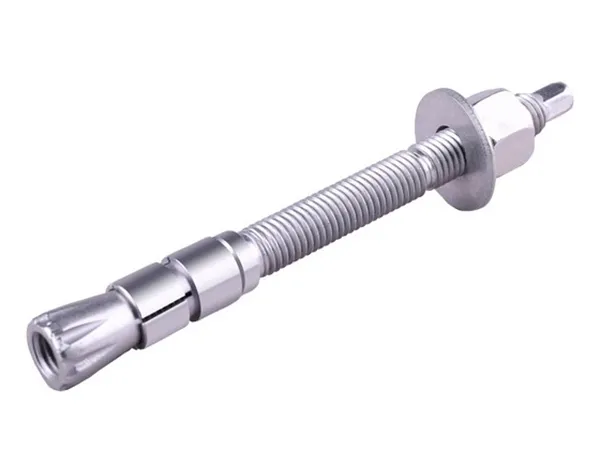

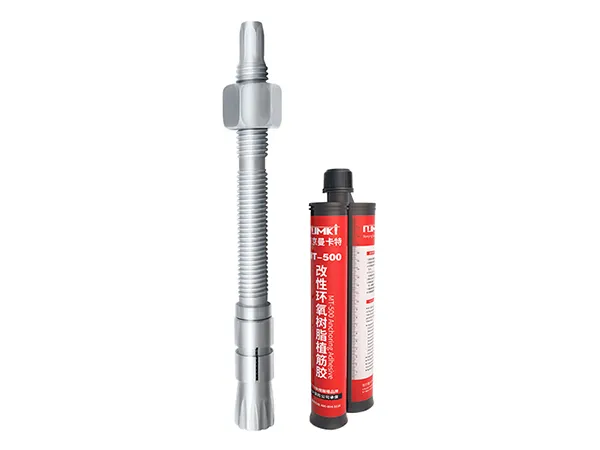

This anchoring system integrates a metal undercut anchor with MT500 injection adhesive, delivering a combination of mechanical interlock and chemical bonding. Designed to withstand high temperatures and certified for 100-year service life, it merges the strengths of chemical and mechanical anchors for dual-load transfer, providing exceptional load-bearing capacity, seismic resistance, and impact durability.
The modified epoxy adhesive offers strong adhesion, flexibility, and complies with non-toxic and hygienic standards. The system requires only a small drill hole diameter, minimizing structural damage during installation. All components have undergone rigorous performance testing to ensure long-term anchorage stability and reliability in critical applications.
Request a Quote
Technical Data
(MT-500 anchoring adhesive with undercut anchor bolt)
Anchor rod size
Material class
Effective embedment depth (mm)
Tension load (kN) (nominal/design)
Shear load (kN) (nominal/design)
Cracked concrete
Non-cracked concrete
Cracked concrete
Non-cracked concrete
M8
5.8
80
18.3*/
12.2
18.3*/
12.2
7.3/6.1
7.3/6.1
8.8
25.1/13.9
29.3*/
19.5
11.7/9.7
11.7/9.7
304
18.3*/
6.4
18.3*/
6.4
3.8/3.2
3.8/3.2
316
25.1/13.4
25.6*/
13.7
8.3/6.9
8.3/6.9
M10
5.8
90
29.0*/
19.3
29.0*/
19.3
11.6/9.7
11.6/9.7
8.8
29.8/19.9
41.8/23.2
18.6/15.5
18.6/15.5
304
29.0*/
10.2
29.0*/
10.2
6.1/5.1
6.1/5.1
316
29.8/16.5
40.6*/
21.7
13.1/10.9
13.1/10.9
M12
5.8
110
40.4/22.4
42.2*/
28.1
16.9/14.1
16.9/14.1
8.8
40.4/22.4
56.5/31.4
27.0/22.5
27.0/22.5
304
40.4/13.4
42.2*/
14.8
8.9/7.4
8.9/7.4
316
40.4/20.9
56.5/31.6
19.0/15.8
19.0/15.8
M16
5.8
8.8
125
48.9/27.2
68.5/38.0
31.4/26.1
31.4/26.1
48.9/27.2
68.5/38.0
50.2/41.9
50.2/41.9
304
48.9/19.8
68.5/27.5
16.5/13.7
16.5/13.7
316
48.9/27.2
68.5/38.0
35.4/29.5
35.4/29.5
M20
5.8
170
77.6/43.1
108.6/60.3
49.0/40.8
49.0/40.8
8.8
77.6/43.1
108.6/60.3
78.4/65.3
78.4/65.3
304
77.6/27.5
108.6/42.9
25.7/21.4
25.7/21.4
316
77.6/43.1
108.6/60.3
55.1/45.9
55.1/45.9
M24
5.8
210
106.5/59.1
149.1/82.8
70.6/58.8
70.6/58.8
8.8
106.5/59.1
149.1/82.8
112.9/94.1
112.9/94.1
304
106.5/37.2
149.1/52.2
37.1/30.9
37.1/30.9
316
106.5/57.1
149.1/79.9
79.4/66.2
79.4/66.2
M27
5.8
250
138.3/76.8
193.7/107.6
91.8/76.5
91.8/76.5
8.8
138.3/76.8
193.7/107.6
147.2/112.6
147.2/112.6
304
138.3/48.4
193.6/67.7
48.2/40.2
48.2/40.2
316
/
/
/
/
M30
5.8
8.8
280
163.9/91.1
229.5/127.5
112.2/93.5
112.2/93.5
163.9/91.1
229.5/127.5
179.5/149.6
179.5/149.6
304
163.9/57.3
229.5/80.3
58.9/49.1
58.9/49.1
316
/
/
/
/
Applications
Suitable for enhancing the strength and stability of concrete structures, including buildings, bridges, and various industrial installations.
Facade reinforcement
Anchoring of overhead contact line supports and evacuation platforms
Load anchoring for steel structures
Reinforcement for machinery, conveyor systems, and storage facilities
Reinforcement of grouted cover plates
Railway transit, bridges, and concrete prestressing
Noise barriers and acoustic walls
Reinforcement of concrete layers and structural joints
Test Reports
Our injection adhesive undercut anchors undergo extensive testing to ensure consistent performance and structural reliability across diverse applications. The following reports confirm their compliance with industry requirements:
Tensile and Shear Strength Test Report – M10, M16, M20, M24
Safety Certification Report – M10, M12 (Material Safety Data Sheet)
