    Carbon Fiber Strip/Plate

    Unidirectional carbon fiber plate for strengthening of concrete and steel structures

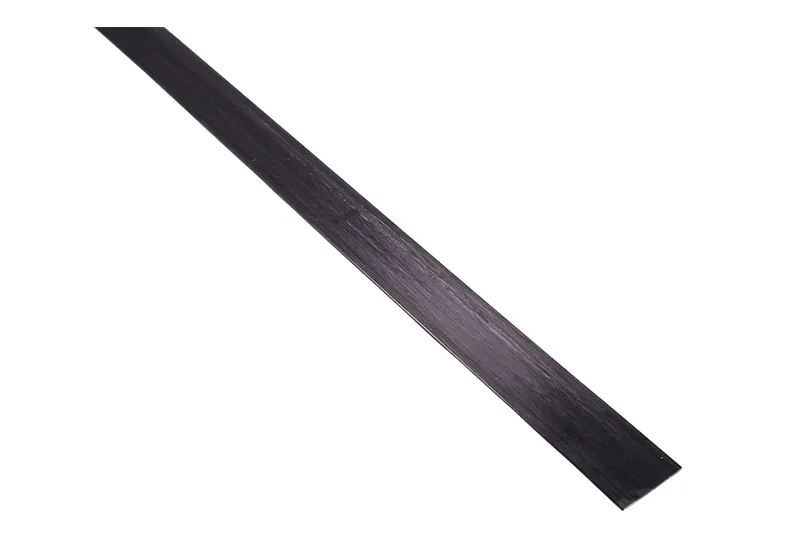

    Carbon fiber strip/plate is a pultruded unidirectional composite designed for structural reinforcement in civil engineering applications. Manufactured using T700-grade carbon fiber filaments and high-performance imported epoxy resin, the plate delivers high strength utilization and excellent stiffness, enabling efficient structural enhancement.

    This reinforcement material offers outstanding durability, corrosion resistance, seismic performance, and impact resistance. It is lightweight, flexible, and easy to install, making it ideal for reinforcing beams, slabs, columns, and steel structures where added load-bearing capacity and long-term reliability are required.

    Request a Quote
    Technical Data
    Model MKT-Ⅰ MKT-Ⅱ
    Thickness 1.2/1.4/2.0/3.0mm 1.2/1.4/2.0/3.0mm
    Width 50/100mm 50/100mm
    Carbon fiber type T700-12K T400-12K
    Tensile strength ≥2400MPa ≥2000MPa
    Modulus of elasticity in tension ≥1.6×10⁵MPa ≥1.4×10⁵MPa
    Elongation ≥1.6% ≥1.4%
    Fiber composite-to-concrete positive tensile bond strength ≥2.5MPa,with cohesive failure of concrete
    Interlaminar shear strength ≥50MPa ≥40MPa
    Fiber volume content ≥65% ≥55%
    Applications

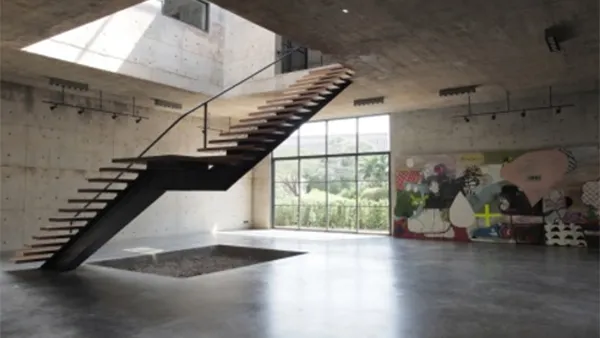

    • Structural reinforcement of concrete beams, floor slabs, and bridge decks
      Structural reinforcement of concrete beams, floor slabs, and bridge decks

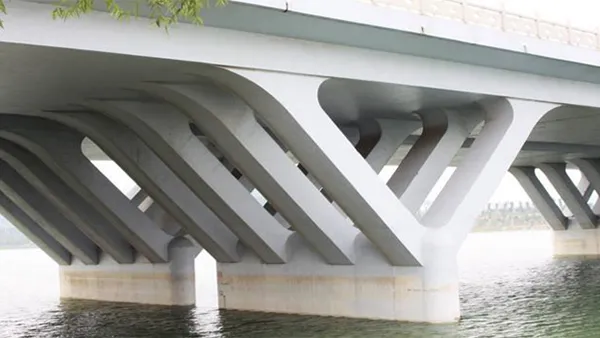

    • Strengthening of bridge piers, piles, and vertical columns
      Strengthening of bridge piers, piles, and vertical columns

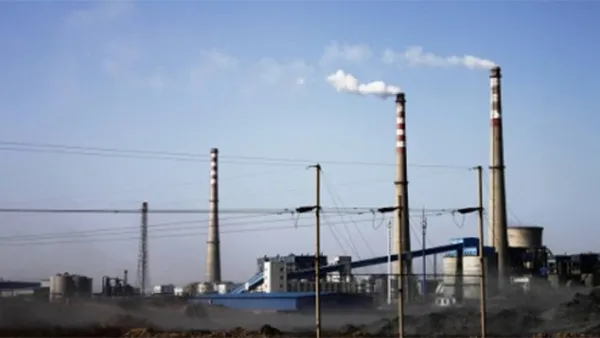

    • Rehabilitation of chimneys, tunnels, and water tanks
      Rehabilitation of chimneys, tunnels, and water tanks
    • Repair and reinforcement of reinforced concrete structures
      Repair and reinforcement of reinforced concrete structures

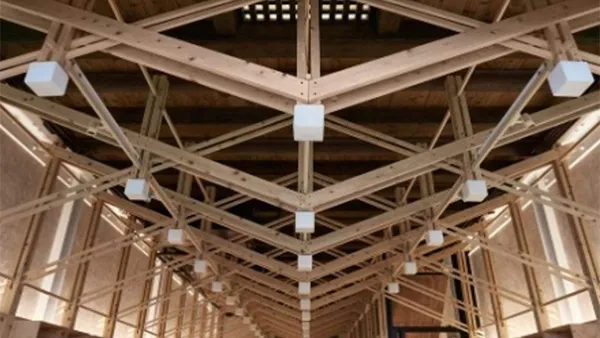

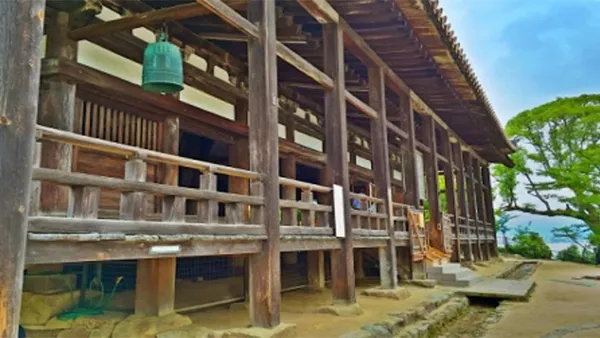

    • Load enhancement of wooden beams in timber structures
      Load enhancement of wooden beams in timber structures

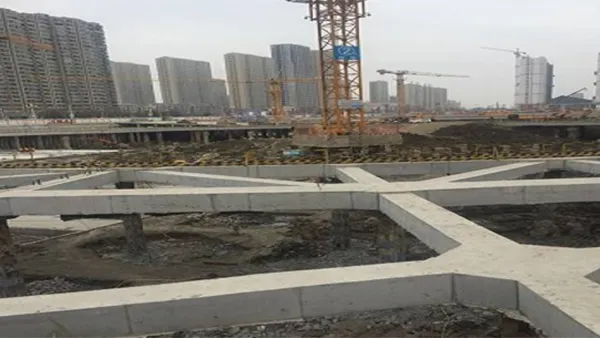

    • Strengthening of deck slabs, footings, and truss members
      Strengthening of deck slabs, footings, and truss members

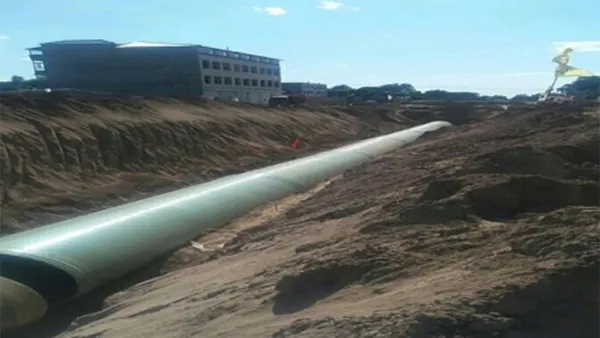

    • Repair and reinforcement of cable conduits and ducting systems
      Repair and reinforcement of cable conduits and ducting systems

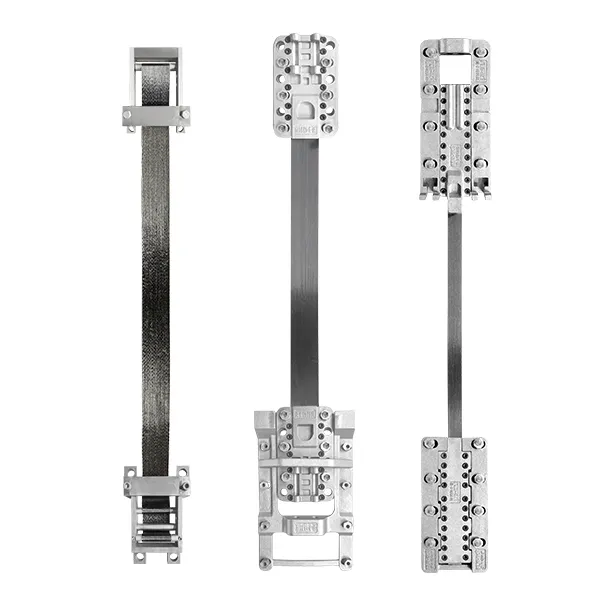

    • Integration into prestressed reinforcement systems
      Integration into prestressed reinforcement systems
    Features
    • Exceptional tensile strength: 4 to 8 times higher than conventional steel, with superior elastic modulus, excellent creep resistance, corrosion resistance, and seismic performance, making it ideal for reinforcing reinforced concrete structures

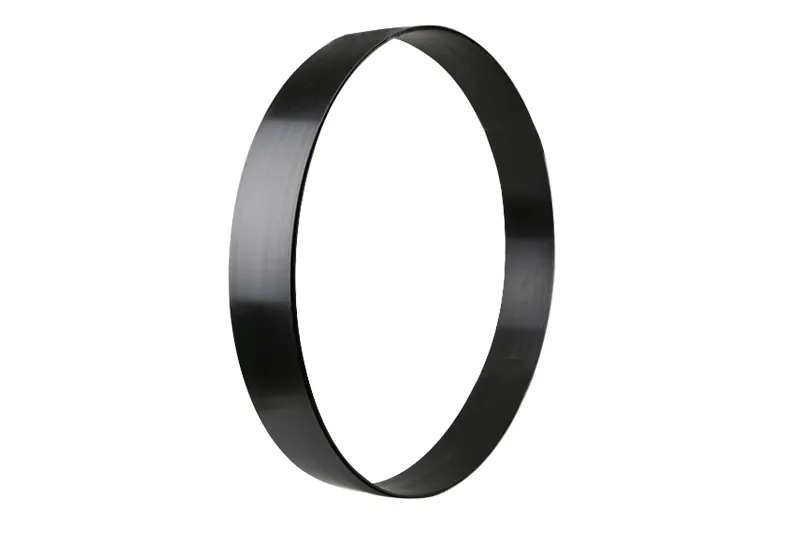

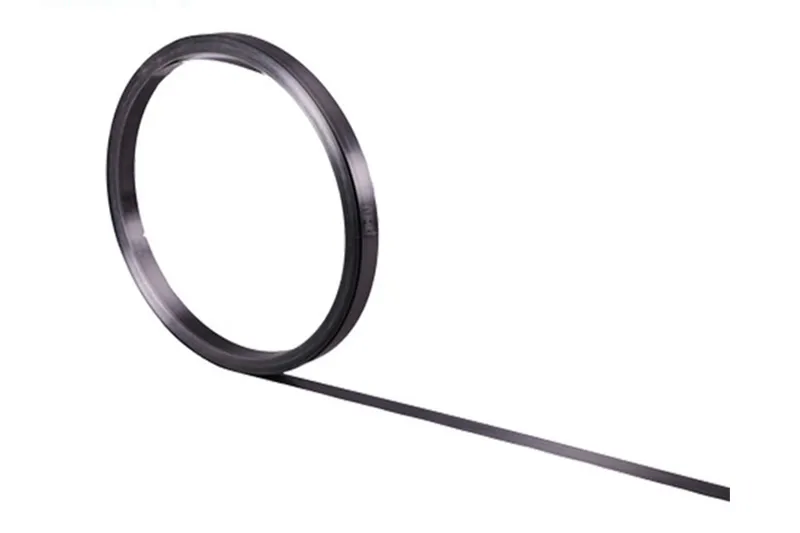

    • Lightweight and flexible: Only one-fifth the weight of steel, with high toughness and the ability to be supplied in long, coiled lengths without joints
    • Efficient installation: Requires no large machinery or fixed site equipment; plates can be cut to length on-site and installed quickly without pre-processing, even allowing for cross-directional bonding
    • Highly durable: Resistant to acids, alkalis, salts, and atmospheric conditions; provides long-term protection to underlying concrete, achieving both reinforcement and structural preservation
    Project Highlights

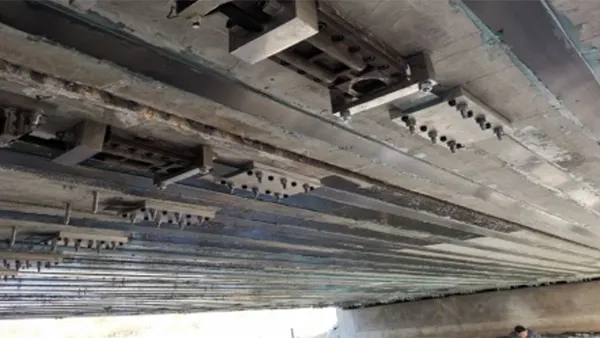

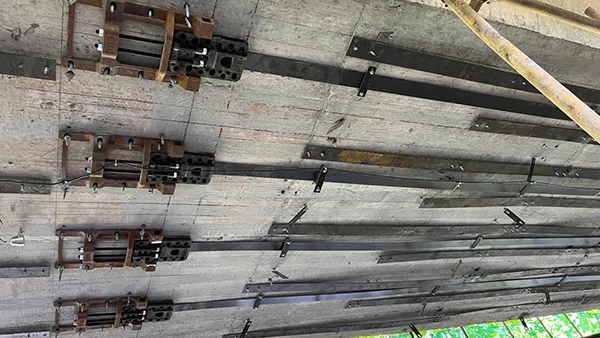

    Strengthening of Nanjing Dingshan Overpass with prestressed carbon fiber plates using detachable micro anchor systems

    • Project Highlights
    • Project Highlights

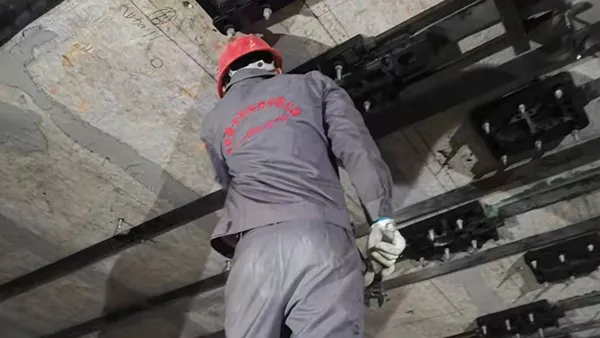

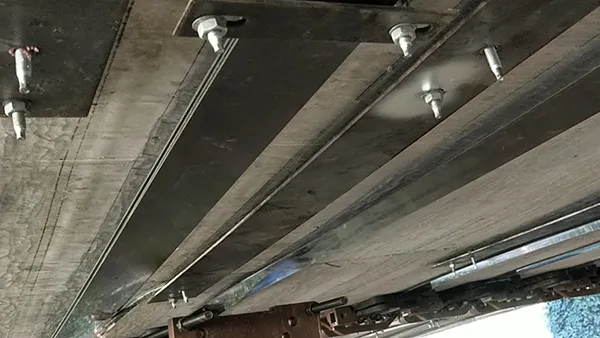

    Structural reinforcement of Anqing Times Square Basement Expansion with prestressed carbon fiber plates and anchoring systems

    • Project Highlights
    • Project Highlights
