    Screw Anchor

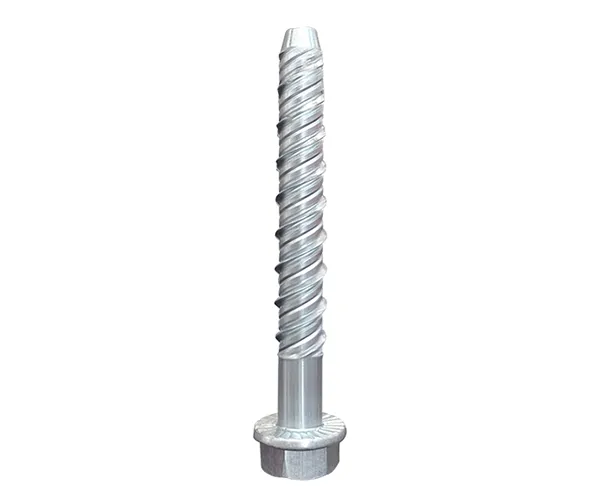

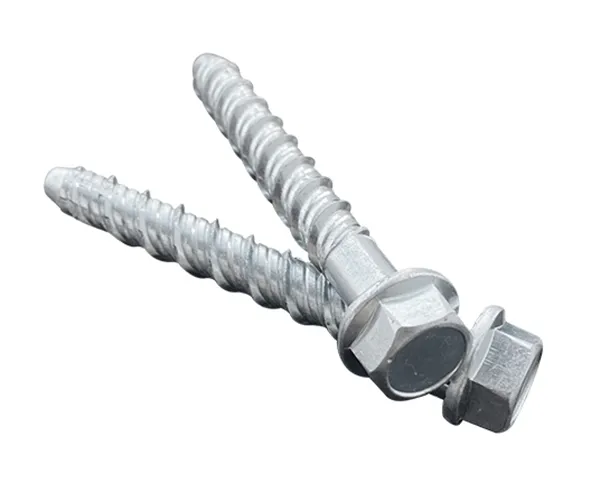

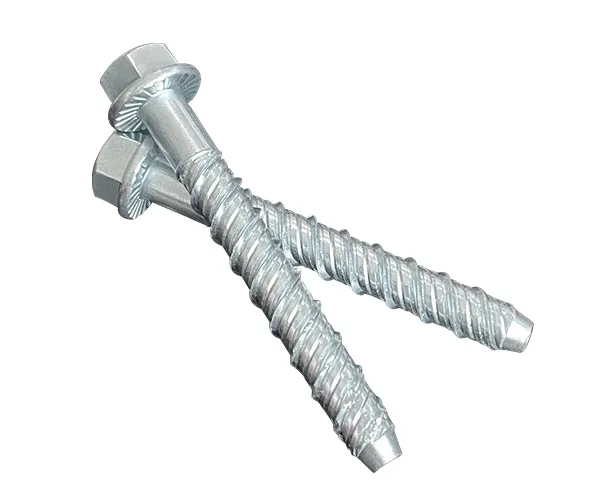

    Screw anchor is a high-efficiency mechanical anchor designed for rapid installation in concrete and solid masonry. Featuring a flanged hex head and self-tapping thread, it offers secure engagement without the need for expansion or torque-controlled tightening.

    Applications
    • Mounting of fencing and base plates for poles
    • Fixation of external wall insulation panels
    • Anchoring of conduit and utility brackets inside tunnels or service corridors
    • Seating fixation in school gyms, sports arenas, and open-air stands
    • Rapid fastening in commercial fit-outs and decorative projects
    • Ground anchoring of static equipment and installations
    Request a Quote
    Technical Data
    Anchor size (Ød×ht/t₂/t₃) Hole diameter (mm) Min. hole depth (mm) Anchor length (mm) Thread diameter (mm)
    Ø8×60 10/5 8 70 60 10
    Ø8×70 20/10 80 70
    Ø8×80 30/15 90 80
    Ø8×90 25/40 100 90
    Ø10×60 5 10 70 60 12
    Ø10×70 15/5 80 70
    Ø10×80 25/15 90 80
    Ø10×90 35/25/15 100 90
    Ø10×100 45/35/15 110 100
    Ø10×120 65/55/35 130 120
    Ø12×70 10 12 80 70 14
    Ø12×85 25/10 95 85
    Ø12×110 50/35/10 120 110
    Ø12×130 70/55/30 140 130
    Ø14×85 25/15 14 95 85 16
    Ø14×100 40/25 110 100
    Ø14×130 50/35/25 140 130
    Features
    • Improved efficiency, requires smaller drill holes and enables fast installation
    • Flanged hex head design for through-fastening with a clean, finished appearance
    • Versatile and reliable installation, no torque wrench required
    • Suitable for reduced edge and spacing distances, minimizing concrete breakout risk
