Cast-In Anchor Channel

Anchorage system for providing flexible fixing points for concrete structures

Cast-In Anchor Channel

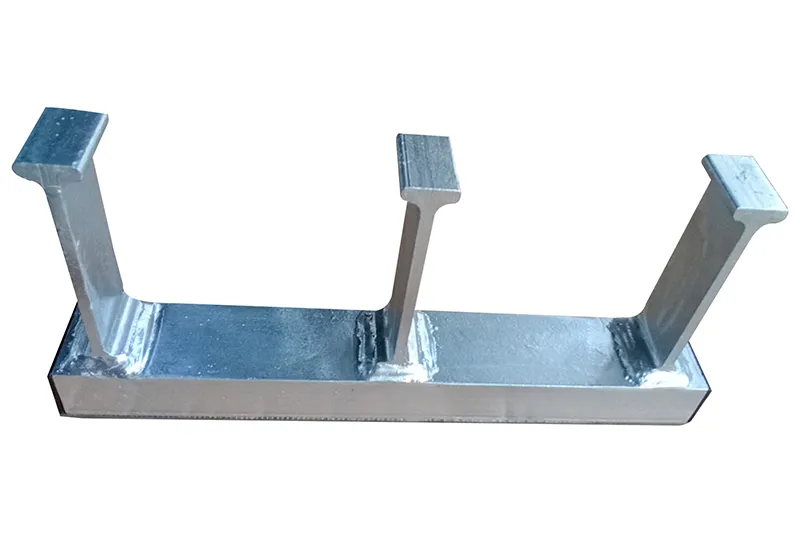

  • Dovetail Slot Cast-in Channel
    Dovetail Slot Cast-in Channel

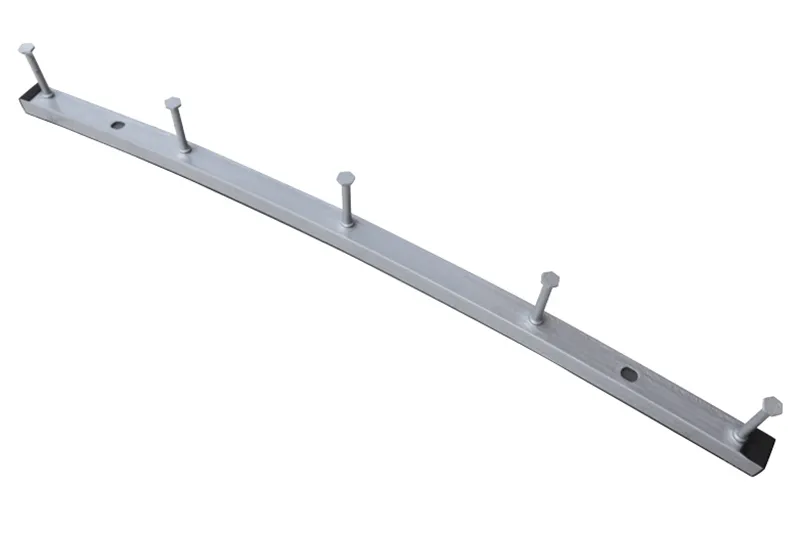

  • Curved Cast-in Channel
    Curved Cast-in Channel

    • Structural Strengthening Systems

    Cast-In Anchor Channel

    Anchorage system for providing flexible fixing points for concrete structures

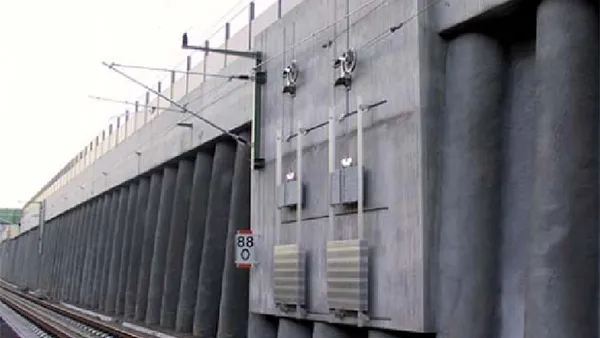

    Cast-in anchor channel is a pre-installed anchoring system embedded directly into concrete to provide secure and adjustable fixing points, and transfer high loads into reinforced and unreinforced concrete components. Commonly used in facade systems, utility tunnels, subway segment panels, secondary linings of high-speed rail tunnels, urban transit systems, and U-beam structures, it offers reliable performance in structural reinforcement and modular connection applications.

    Request a Quote
    Technical Data
    Model Length (mm) Width (mm) Channel section height (mm) Anchor spacing (mm) End spacing (mm)
    30/20 7200 30 20 50-250 ≥25
    38/23 7200 38 23 50-250 ≥25
    40/22 7200 40 22 100-250 ≥25
    40/26 7200 40 26 100-250 ≥25
    50/25 7200 50 25 100-250 ≥25
    50/30 7200 50 30 100-250 ≥25
    52/34 7200 52 34 100-250 ≥25
    53/34 7200 53 34 100-250 ≥25
    72/48 7200 72 48 100-250 ≥25
    The actual spacing of the anchor bolts should be determined based on the project-specific structural calculations.

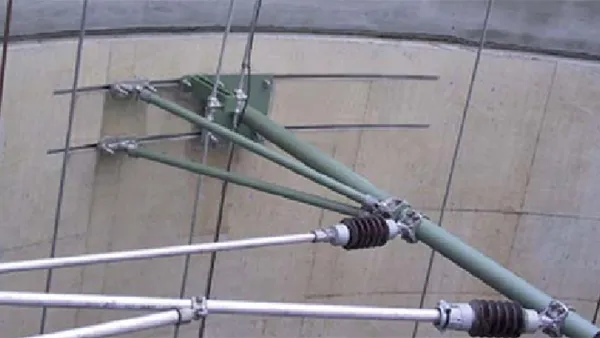

    Applications
    • Mounting of accessories and auxiliary components
    • Installation of mechanical systems, including heating, ventilation, air conditioning (HVAC), and plumbing pipelines

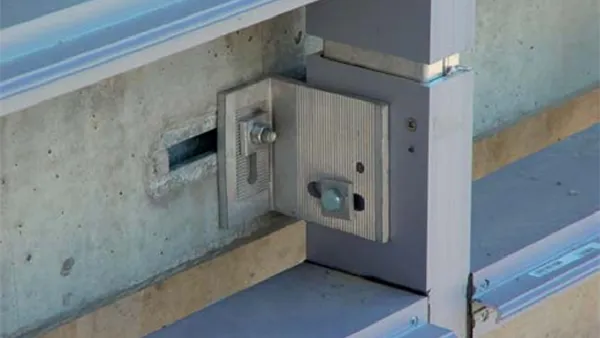

    • Lateral fixation of structural columns, such as curtain wall subframes
    • Flexible mounting requirements in power plants, factories, and exhibition halls

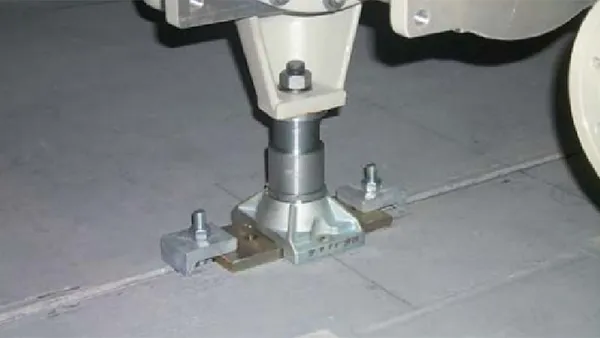

    • Installation of elevator guide rails and elevator side door systems
    • Fixing of medium-duty and smaller equipment
    • Cast-In Anchor Channel
    • Cast-In Anchor Channel
    • Cast-In Anchor Channel
    • Cast-In Anchor Channel
    Features
    • T-bolts can slide along the channel for flexible positioning of anchorage points
    • Available with multiple corrosion-resistant finishes, including multi-metal diffusion treatment, hot-dip galvanizing, electroplating, and powder coating
    • Pre-fabricated using hot-rolled profiles, offering excellent structural performance for both static and dynamic loads, while significantly reducing on-site installation time
    • Equipped with environmentally friendly sealing strips and end caps to prevent grout leakage during concrete embedding
