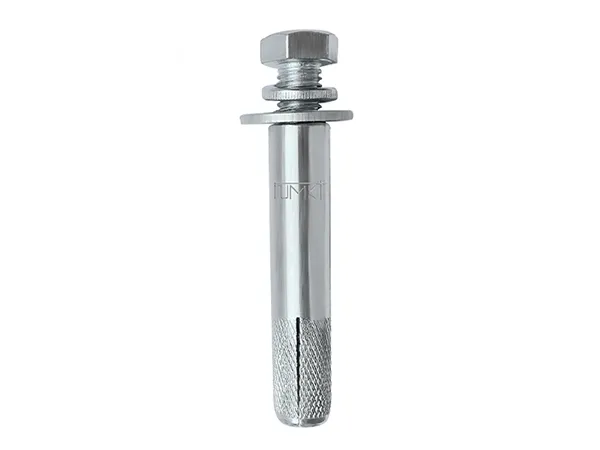

The drop-in anchor is designed for fast, flush-mounted installation in solid concrete, making it well-suited for applications with narrow spacing and limited edge distance. With multiple embedment depths available, it provides adaptable installation while ensuring reliable load-bearing performance across various structural conditions.

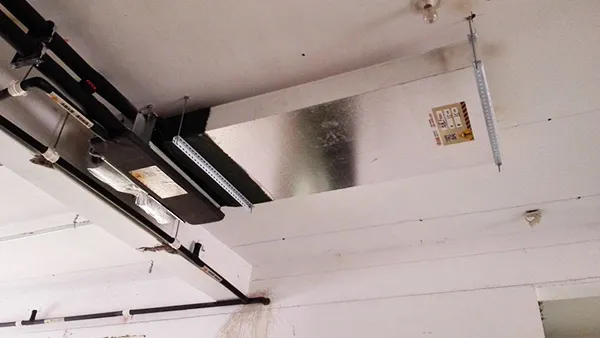

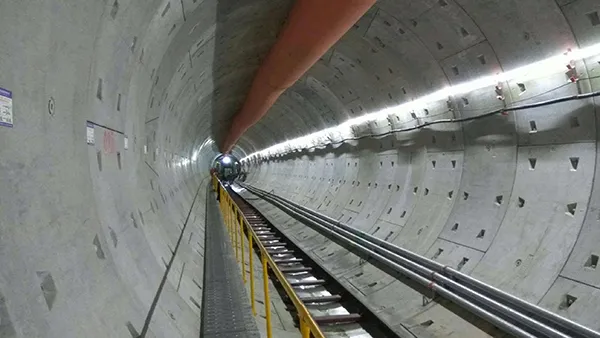

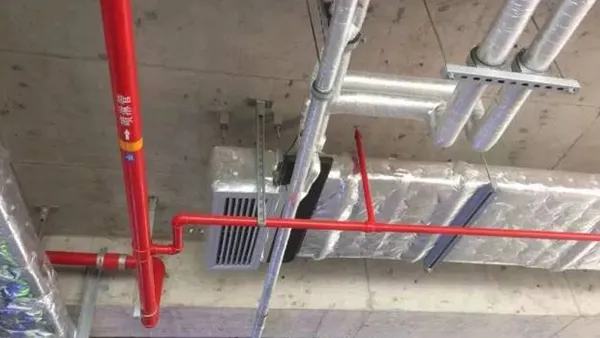

Suitable substrates
| Internal thread diameter | Hole depth (mm) | Anchor length (mm) | Tension load (kN) | Shear load (kN) | |||
| Cracked concrete | Non-cracked concrete | Cracked/Non-cracked concrete | |||||
| 5.8/8.8/304 | 5.8/8.8/304 | 5.8 | 8.8 | 304 | |||
| M6 | 27 | 25 | 1.3 | 1.8 | 3.1 | 4.9 | 1.6 |
| M8 | 44 | 40 | 3.3 | 4.6 | 4 | 6.4 | 2.1 |
| 27 | 25 | 1.7 | 2.4 | 4 | 6.4 | 2.1 | |
| 33 | 30 | 1.8 | 2.6 | 4 | 6.4 | 2.1 | |
| M10 | 44 | 40 | 4.1 | 5.8 | 6.4 | 10.2 | 6.1 |
| 27 | 25 | 2.1 | 3 | 6.4 | 10.2 | 6.1 | |
| 33 | 30 | 2.3 | 3.3 | 6.4 | 10.2 | 6.1 | |
| M12 | 55 | 50 | 5 | 7.1 | 9.3 | 14.8 | 8.9 |
| 27 | 25 | 2.6 | 3.6 | 9.3 | 14.8 | 8.9 | |
| M16 | 70 | 65 | 8.6 | 12.1 | 17.3 | 27.6 | 9.1 |
| M20 | 85 | 80 | 13 | 18.3 | 26.9 | 43.1 | 14.1 |
